Properties: Incoloy 825 is a nickel-iron-chromium alloy that also contains elements such as molybdenum and copper. The synergistic effect of these elements gives it excellent corrosion resistance. It has good resistance to various acids such as sulfuric acid, hydrochloric acid, phosphoric acid, as well as some oxidizing and reducing media. Even under conditions of large changes in concentration and temperature, it can maintain stable corrosion resistance. At the same time, it has good resistance to stress corrosion cracking and pitting corrosion, which can effectively avoid corrosion damage caused by stress concentration in harsh environments. It has good hot working and cold working performance, can be formed and processed through conventional processing techniques, and has excellent welding performance. The performance of the welded joint is similar to that of the base metal.
-

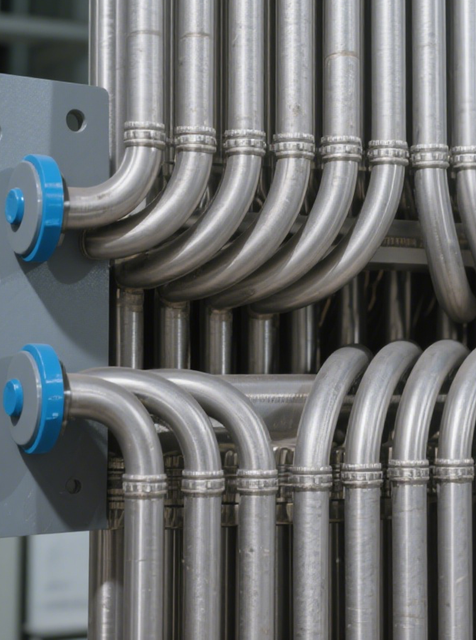

PipesParameters: The outer diameter is 6mm - 630mm, the wall thickness is 1mm - 50mm, the working pressure can reach 40MPa, the temperature resistance range is -196℃ - 1100℃, and it meets standards such as ASTM B163. -

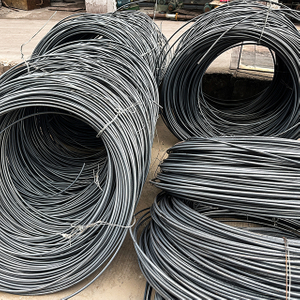

WireParameters: The diameter is 0.05mm - 10mm, the tensile strength is 500MPa - 1500MPa, the conductivity is 20% - 30% IACS, and it can work stably in the environment of -200℃ - 800℃. -
Pipe FittingsParameters: The diameter range is usually 1/8 inch - 24 inches, the wall thickness is 3mm - 50mm, the working temperature is -270℃ - 1200℃, and the corrosion resistance can resist strong acids (such as 98% sulfuric acid), strong alkalis and seawater corrosion. -

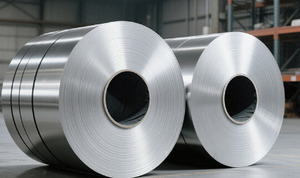

Plates/SheetsParameters: The thickness is 0.3mm - 100mm, the width is 1000mm - 3000mm, the tensile strength is ≥600MPa, the elongation is ≥30%, and the high-temperature oxidation resistance temperature can reach above 1000℃. -

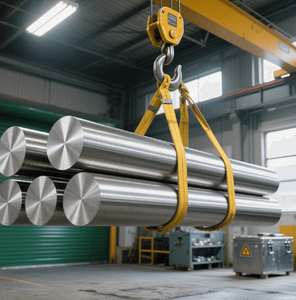

Bars/RodsParameters: The diameter is 5mm - 500mm, the length is 1m - 6m, the hardness is HRC 20 - 45, it can withstand a yield strength of more than 1000MPa, and the intergranular corrosion resistance meets the standards (such as ASTM G28 standard).
