Nickel–Iron–Chromium Alloys for Long-Term High-Temperature & Corrosive Service
Incoloy alloy is a family of nickel–iron–chromium (Ni–Fe–Cr) alloys engineered for long-term, continuous operation in elevated-temperature and corrosive industrial environments. Compared with high-nickel superalloys designed for extreme short-term conditions, Incoloy alloys provide an optimal balance of thermal stability, oxidation resistance, corrosion resistance, mechanical strength, and cost efficiency.
Incoloy alloys are widely used in power generation, petrochemical processing, heat exchangers, industrial furnaces, and oil & gas systems, where equipment is expected to operate reliably for thousands of hours with minimal maintenance.
What Is Incoloy Alloy?
Incoloy refers to a group of nickel-based alloys with a relatively higher iron content than Inconel alloys. This composition enhances structural stability during prolonged thermal exposure while maintaining good resistance to oxidation and many aqueous corrosive environments.
Because of this balance, Incoloy alloys are often selected for large-scale industrial equipment that must deliver predictable, long service life under continuous operating conditions.
Key Performance Characteristics of Incoloy Alloys
Excellent resistance to oxidation and carburization at elevated temperatures
Stable mechanical properties during long-term continuous service
Good resistance to aqueous corrosion in many industrial environments
Improved dimensional stability under prolonged thermal exposure
More cost-efficient than high-nickel superalloys for suitable applications
These characteristics make Incoloy alloys a practical choice for equipment where reliability and lifecycle cost are as important as performance.
Typical Service Conditions for Incoloy Alloys
Instead of focusing solely on maximum temperature, Incoloy alloys are commonly selected based on service duration and operating stability.
| Operating Condition | Incoloy Alloy Suitability |
|---|
| Continuous long-term operation | Excellent |
| Oxidizing atmospheres | Excellent |
| Carburizing environments | Good |
| Aqueous corrosion (non-extreme acids) | Good |
| Severe reducing acids | Not recommended |
| Extreme chloride corrosion | Limited |
Common Incoloy Alloy Grades We Supply
The table below summarizes the most commonly supplied Incoloy alloy grades in this category, with direct access to detailed product specifications.
| Incoloy Grade | Alloy System | Key Strengths | Typical Applications | Available Products |
|---|

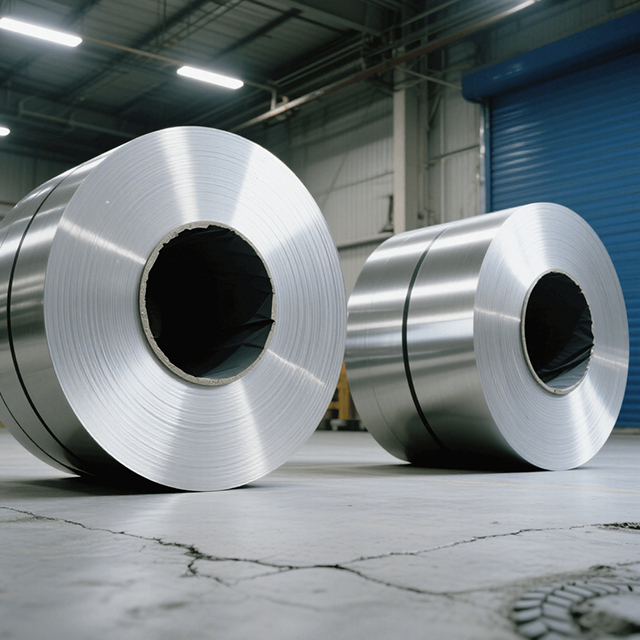

| Incoloy 800 | Ni–Fe–Cr | Oxidation resistance, thermal stability | Heat exchangers, furnace components | View Incoloy 800 |
| Incoloy 800H | Ni–Fe–Cr | Improved high-temperature strength | Reformers, superheaters | View Incoloy 800H |

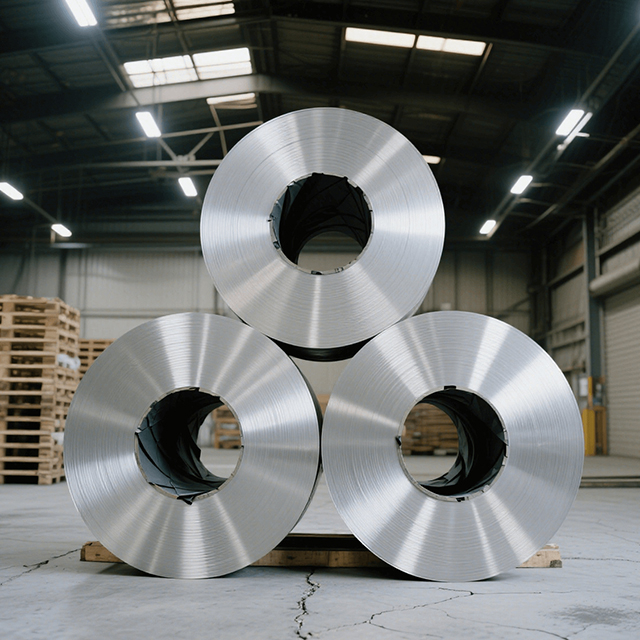

| Incoloy 800HT | Ni–Fe–Cr | Enhanced creep and rupture strength | High-temperature process equipment | View Incoloy 800HT |

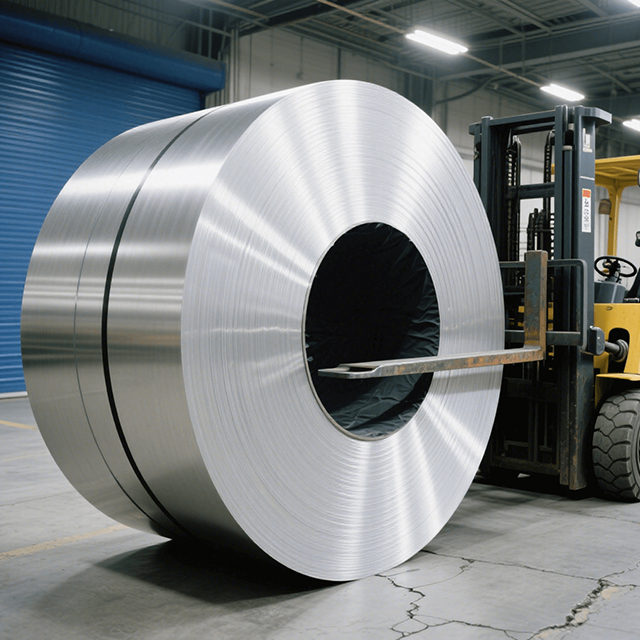

| Incoloy 825 | Ni–Fe–Cr–Mo–Cu | Excellent resistance to aqueous corrosion | Chemical processing, oil & gas | View Incoloy 825 |

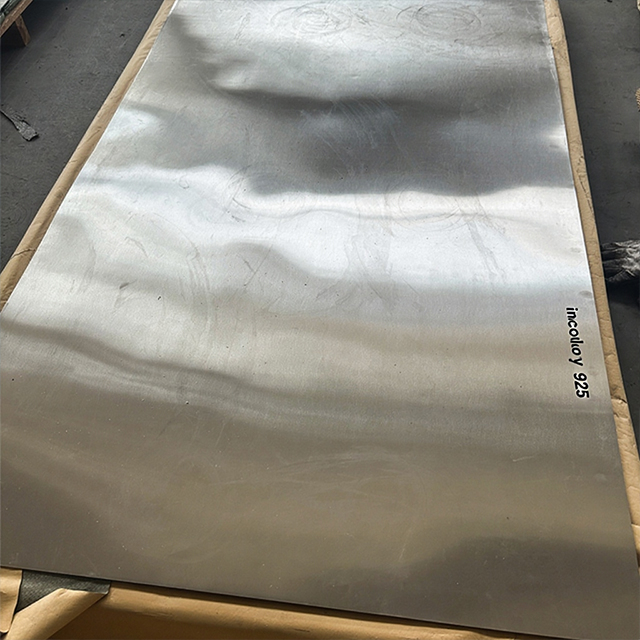

| Incoloy 925 | Ni–Fe–Cr–Mo–Cu | Higher strength with corrosion resistance | Downhole and oil & gas components | View Incoloy 925 |

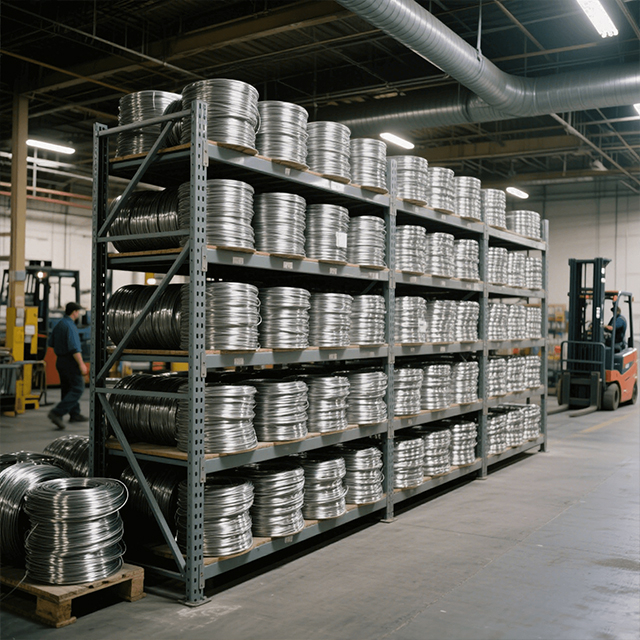

| Incoloy A-286 | Fe–Ni–Cr | High strength at elevated temperatures | Aerospace and structural components | View Incoloy A-286 |
How to Select Incoloy Alloys by Service Life and Operating Mode
Incoloy alloys are often chosen based on how equipment operates over time, not just peak temperature. The following guide helps select suitable grades according to operating mode.
| Operating Mode | Typical Conditions | Recommended Incoloy Grades | Selection Rationale |
|---|
| Continuous long-term operation | Constant elevated temperature for thousands of hours | Incoloy 800 / 800H / 800HT | Excellent microstructural stability |
| Cyclic heating and cooling | Frequent thermal cycling | Incoloy 800H, 825 | Good thermal fatigue resistance |
| Corrosive aqueous environments | Long-term exposure to chemicals | Incoloy 825 | Enhanced corrosion resistance |
| High load with elevated temperature | Sustained stress | Incoloy A-286 | High strength and stability |
| Oil & gas continuous service | Pressure, chlorides, long cycles | Incoloy 825, 925 | Balanced corrosion resistance and strength |
Selecting Incoloy alloys by operating mode helps extend service life, reduce downtime, and control lifecycle cost.
Why Operating Mode Matters
Long-term exposure can cause microstructural changes even below maximum temperature limits
Thermal cycling increases fatigue risk and requires alloys with stable grain structures
Cost efficiency becomes critical for equipment designed to operate continuously for years
By selecting Incoloy alloys according to operating mode rather than peak conditions alone, engineers can achieve longer service life, fewer shutdowns, and better lifecycle cost control.
Incoloy Alloy Product Forms Available
We supply Incoloy alloy materials in a wide range of product forms to support fabrication and installation:
Custom dimensions and international standards are available upon request.
Where Incoloy Alloys Fit Compared to Other Materials
| Requirement | Incoloy Alloy | Stainless Steel | Inconel |
|---|
| Long-term high-temperature service | Excellent | Limited | Excellent |
| Oxidation resistance | Excellent | Good | Excellent |
| Cost efficiency | Better balance | Best | Lower |
| Extreme temperature (>1000°C) | Limited | Not suitable | Excellent |
| Extreme acid corrosion | Limited | Limited | Moderate |
Incoloy alloys are often selected as a middle-ground solution between stainless steel and high-nickel superalloys.
Typical Applications of Incoloy Alloys
Heat exchangers and process piping
Industrial furnaces and heat treatment equipment
Petrochemical and refinery systems
Power generation boilers and superheaters
Oil & gas processing equipment
Frequently Asked Questions About Incoloy Alloy
What is Incoloy alloy used for?
Incoloy alloys are used for long-term high-temperature service, oxidation resistance, and stable performance in industrial environments.
Is Incoloy better than stainless steel?
Incoloy generally performs better at elevated temperatures and during long-term service, while stainless steel may be more economical for lower-temperature applications.
Is Incoloy the same as Inconel?
No. Incoloy alloys focus on long-term stability and cost efficiency, while Inconel alloys are designed for extreme high-temperature strength.
Can Incoloy alloys be welded?
Yes. Incoloy alloys are weldable using standard industrial welding procedures with appropriate filler materials and process control.
What is INCOLOY material?
INCOLOY is a family of nickel–iron–chromium alloys designed for reliable performance in long-term high-temperature and corrosive environments. Compared with many high-nickel superalloys, INCOLOY alloys contain a higher iron content, offering a balance of oxidation resistance, mechanical strength, corrosion resistance, and cost efficiency. They are widely used in power generation, petrochemical processing, heat exchangers, and industrial furnace systems.
What is INCOLOY made of?
INCOLOY alloys are primarily composed of nickel, iron, and chromium, with additional alloying elements such as molybdenum, copper, aluminum, or titanium depending on the specific grade.
Nickel provides corrosion resistance and thermal stability
Chromium enhances oxidation resistance
Iron improves structural stability and reduces cost
The exact composition varies by grade (e.g., INCOLOY 800, 825, 901).
What is the difference between INCONEL and INCOLOY?
The key difference lies in design focus and composition:
INCOLOY: Nickel–iron–chromium alloys optimized for long-term continuous service, oxidation resistance, and cost efficiency
INCONEL: Nickel–chromium-based superalloys optimized for extreme high-temperature strength and creep resistance
INCOLOY is often selected for large-scale industrial systems operating continuously, while INCONEL is preferred for extreme heat and high-stress applications such as turbines and aerospace components.
Is INCOLOY better than copper?
INCOLOY and copper serve very different purposes. INCOLOY is significantly stronger at elevated temperatures, offers better mechanical stability, and resists oxidation in hot environments. Copper, on the other hand, excels in electrical and thermal conductivity but loses strength rapidly at high temperatures. For structural or high-temperature industrial applications, INCOLOY is far more suitable.
Does INCOLOY rust?
INCOLOY does not rust like carbon steel. Thanks to its nickel and chromium content, it forms protective oxide layers that provide good resistance to oxidation and many forms of corrosion. However, like all alloys, INCOLOY can corrode under specific aggressive environments depending on temperature, chemistry, and grade selection. Proper material selection is essential.
Is INCOLOY stronger than steel?
At room temperature, some high-strength steels may match or exceed INCOLOY in tensile strength. However, INCOLOY retains strength far better than carbon steel at elevated temperatures and during long-term service, making it a superior choice for heat exchangers, boilers, and furnace components where steel would soften or oxidize.
Will a magnet stick to INCOLOY?
Magnetic behavior depends on the specific grade and processing condition. Many INCOLOY alloys are weakly magnetic or non-magnetic in the annealed condition, but cold working, heat treatment, or welding can introduce some magnetic response. Magnetism is not a reliable identification method; material certification should be used instead.
What is the difference between INCOLOY 825 and SS316?
INCOLOY 825 offers significantly better resistance to corrosion, particularly in acidic and chloride-containing environments, compared with 316 stainless steel. While SS316 is cost-effective and suitable for moderate conditions, INCOLOY 825 is designed for more aggressive chemical environments and higher reliability in long-term service, especially in oil & gas and chemical processing applications.
What is INCOLOY construction?
“INCOLOY construction” typically refers to equipment or components fabricated from INCOLOY alloys, such as heat exchangers, piping systems, furnace parts, and pressure vessels. These constructions take advantage of INCOLOY’s ability to maintain mechanical integrity, resist oxidation, and provide long service life under continuous thermal exposure.
Can Inconel be welded?
Yes. Inconel alloys are weldable using appropriate welding processes (such as TIG or MIG) and compatible filler materials. However, welding requires strict control of heat input, cleanliness, and procedure qualification due to the alloy’s high strength and sensitivity to microstructural changes.
Can Inconel rust?
Inconel does not rust like carbon steel. It resists oxidation and corrosion due to its nickel–chromium composition, but corrosion can still occur in certain aggressive environments depending on grade and service conditions.
What are the disadvantages of using Inconel?
Common disadvantages include:
These drawbacks are often acceptable when extreme temperature strength and reliability are required.
Why is Inconel so expensive?
Inconel is expensive due to high nickel content, complex alloying, strict melting and processing controls, and difficult machining. The higher upfront cost is often offset by longer service life and reduced maintenance in extreme environments.
