Nickel-Based Alloys for Extreme Corrosion Resistance
Hastelloy alloy is a family of high-performance nickel-based alloys specifically engineered for outstanding corrosion resistance in the most aggressive chemical environments. Unlike many conventional stainless steels and nickel alloys, Hastelloy materials are designed to resist pitting, crevice corrosion, and stress corrosion cracking in both oxidizing and reducing media.
Due to their exceptional chemical stability, Hastelloy alloys are widely used in chemical processing, pollution control, oil & gas, power generation, and other industries where material failure from corrosion is not acceptable.
What Is Hastelloy Alloy?
Hastelloy alloy refers to a group of nickel-based alloys containing carefully balanced additions of chromium, molybdenum, iron, and other elements to enhance resistance to a wide range of corrosive chemicals. These alloys are particularly effective in environments involving strong acids, mixed acid systems, and chloride-containing media.
Hastelloy alloys maintain reliable mechanical performance while providing superior corrosion protection, making them a preferred choice for critical equipment operating in harsh chemical conditions.
Key Properties of Hastelloy Alloys
Exceptional resistance to strong acids such as hydrochloric, sulfuric, and nitric acid
Excellent resistance to pitting and crevice corrosion
High stability in both oxidizing and reducing environments
Strong resistance to stress corrosion cracking
Reliable mechanical properties under elevated temperatures and pressure
These properties allow Hastelloy alloys to deliver long service life and reduced maintenance requirements in corrosive operating conditions.
Common Hastelloy Alloy Grades We Supply
The following are some of the most commonly supplied Hastelloy alloy grades, each optimized for specific corrosion challenges and operating environments.
| Hastelloy Grade | Alloy Family | Primary Corrosion Strength | Typical Service Environment | Relative Corrosion Resistance | Available Products |
|---|

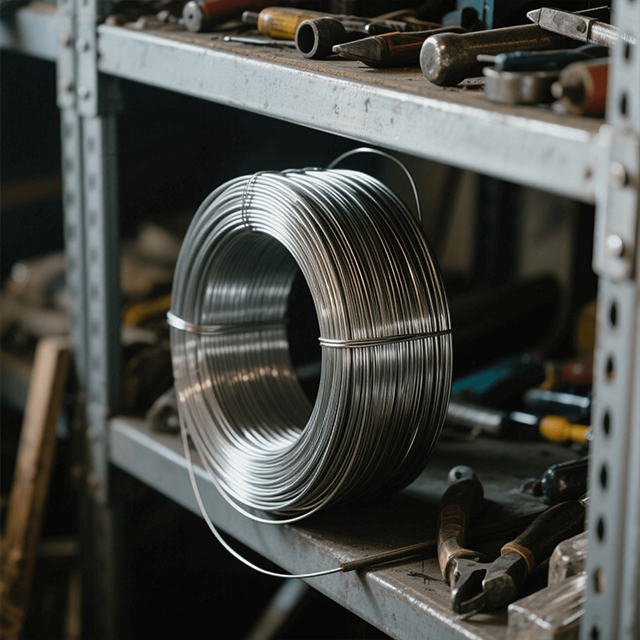

| Hastelloy C-276 | C Series | Excellent resistance to oxidizing & reducing acids | Mixed acids, chlorides, wet chlorine gas | ★★★★★ | View C-276 Products |

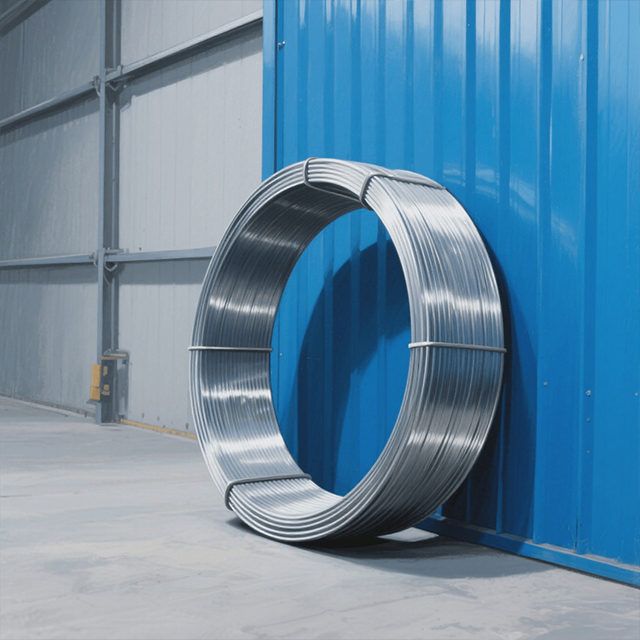

| Hastelloy C-22 | C Series | Superior pitting & crevice corrosion resistance | Chloride-containing and oxidizing media | ★★★★★ | View C-22 Products |

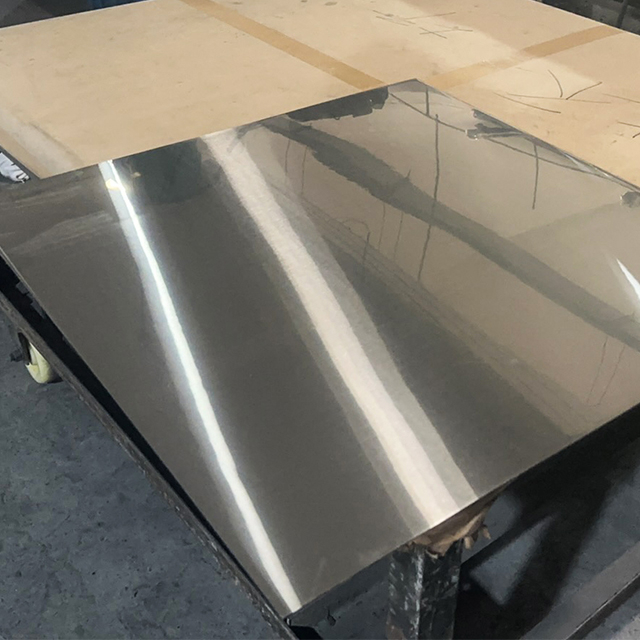

| Hastelloy C-2000 | C Series | Balanced resistance to sulfuric & hydrochloric acids | Mixed chemical processing environments | ★★★★☆ | View C-2000 Products |

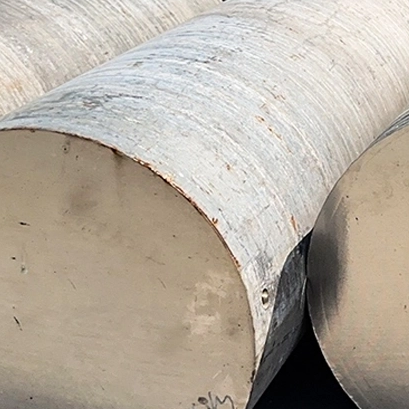

| Hastelloy G-30 | G Series | Excellent resistance to phosphoric acid | Fertilizer, phosphoric acid processing | ★★★★☆ | View G-30 Products |

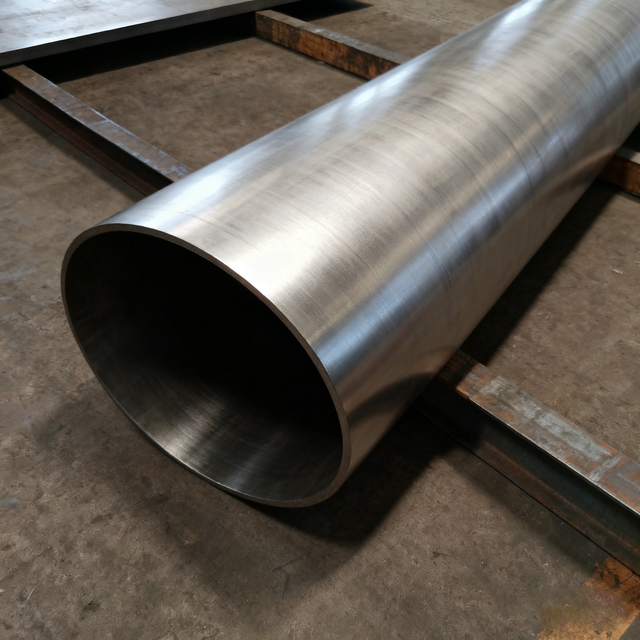

| Hastelloy G-35 | G Series | Improved resistance to sulfuric & phosphoric acids | Chemical reactors, acid handling systems | ★★★★☆ | View G-35 Products |

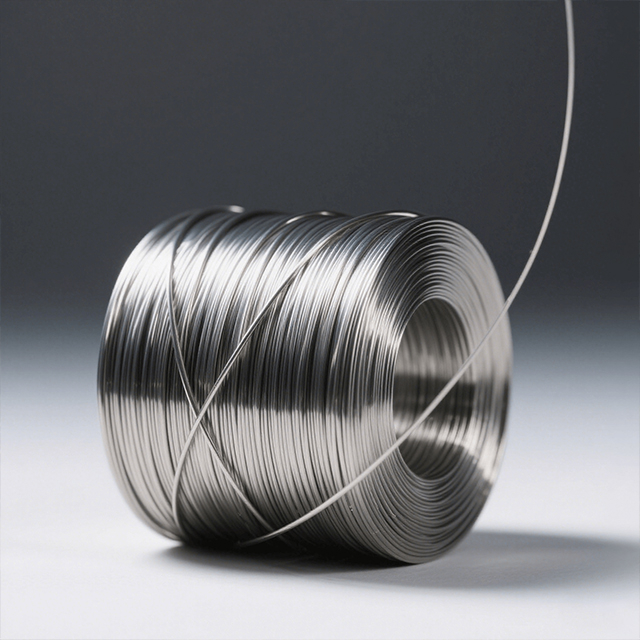

| Hastelloy B-2 | B Series | Outstanding resistance to hydrochloric acid | HCl processing, reducing environments | ★★★★☆ | View B-2 Products |

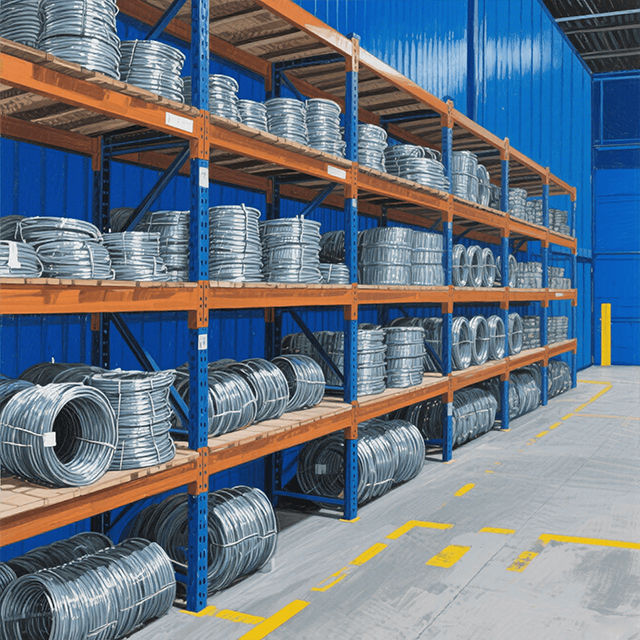

| Hastelloy B-3 | B Series | Enhanced thermal stability vs B-2 | High-temperature hydrochloric acid service | ★★★★☆ | View B-3 Products |

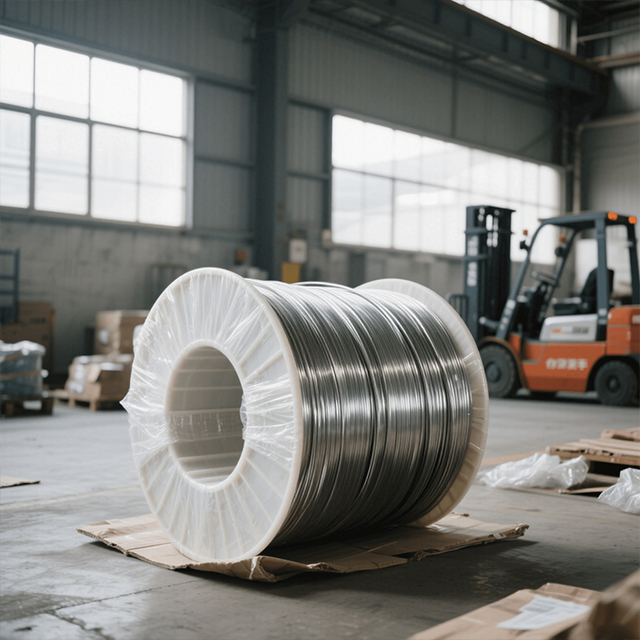

| Hastelloy B | B Series | Good resistance to non-oxidizing acids | Moderate acid environments | ★★★☆☆ | View Hastelloy B Products |
Corrosion Environment Compatibility of Hastelloy Alloys
Selecting the correct Hastelloy grade depends heavily on the specific corrosive environment. Different alloys are optimized for resistance to different chemicals and corrosion mechanisms. The matrix below provides general guidance for common industrial environments.
| Corrosive Environment | Hastelloy C-276 | Hastelloy C-22 | Hastelloy B-2 | Hastelloy X |
|---|
| Hydrochloric Acid (HCl) | Excellent | Very Good | Excellent | Limited |
| Sulfuric Acid (H₂SO₄) | Excellent | Excellent | Good | Limited |
| Nitric Acid (HNO₃) | Good | Excellent | Not Recommended | Moderate |
| Mixed Acids | Excellent | Excellent | Not Recommended | Moderate |
| Chloride-Containing Media | Very Good | Excellent | Good | Moderate |
| Pitting & Crevice Corrosion Risk | Very Good | Excellent | Moderate | Limited |
| High-Temperature Oxidizing Atmosphere | Good | Good | Limited | Very Good |
Note: Actual performance depends on concentration, temperature, and operating conditions. Final material selection should be based on detailed engineering evaluation.
Typical Applications of Hastelloy Alloys
Hastelloy alloys are widely used in industries requiring exceptional corrosion resistance and long-term reliability:
Chemical processing equipment and reactors
Acid handling and storage systems
Heat exchangers and pressure vessels
Flue gas desulfurization (FGD) systems
Oil & gas and offshore chemical environments
Hastelloy Alloy Product Forms Available
We supply Hastelloy alloy materials in a wide range of product forms to meet various fabrication and installation requirements.
| Product Form | Description | Common Uses |
|---|
| Plates & Sheets | Flat-rolled products with excellent corrosion resistance | Reactors, pressure vessels |
| Bars & Rods | Solid forms with high mechanical strength | Shafts, fittings |
| Pipes & Tubes | Seamless or welded hollow sections | Chemical pipelines, heat exchangers |
| Forgings | Hot-worked components with refined structure | High-stress chemical components |
| Fasteners | Corrosion-resistant bolts and screws | Chemical and offshore equipment |
Custom dimensions and processing services are available upon request.
Hastelloy Alloy vs Inconel Alloy
Hastelloy and Inconel are both nickel-based alloys, but they are designed for different primary performance requirements.
| Feature | Hastelloy Alloy | Inconel Alloy |
|---|
| Primary Strength | Corrosion resistance | High-temperature strength |
| Acid Resistance | Excellent | Moderate |
| Typical Industries | Chemical processing, FGD | Aerospace, power generation |
| Operating Focus | Aggressive chemical environments | Extreme heat and pressure |
Choosing between Hastelloy and Inconel depends on whether corrosion resistance or high-temperature strength is the dominant requirement.
Frequently Asked Questions About Hastelloy Alloy
What is Hastelloy alloy used for?
Hastelloy alloys are used in chemical processing, acid handling, pollution control, and other applications requiring exceptional corrosion resistance.
Why is Hastelloy so expensive?
The high cost is mainly due to high nickel and molybdenum content, strict processing controls, and challenging fabrication requirements. Longer service life often offsets the initial material cost.
Is Hastelloy better than stainless steel?
For highly corrosive environments, Hastelloy significantly outperforms stainless steel. Stainless steel may be sufficient for moderate conditions.
Can Hastelloy rust?
Hastelloy does not rust like carbon steel, but it can corrode under specific extreme conditions depending on the environment and alloy grade.
Is Hastelloy difficult to weld?
Hastelloy alloys are weldable with proper procedures, filler materials, and process control.
What type of alloy is Hastelloy?
Hastelloy is a family of nickel-based corrosion-resistant alloys. Most Hastelloy grades are built on a high-nickel matrix and alloyed with elements such as molybdenum, chromium, iron, and tungsten to improve resistance to specific corrosion mechanisms (e.g., pitting, crevice corrosion, stress corrosion cracking) and to withstand aggressive acids and chloride-containing environments. Different Hastelloy grades are tailored to different chemical exposures, which is why grade selection is critical.
What is Hastelloy good for?
Hastelloy is best suited for severe corrosion environments, especially where stainless steel may fail. Typical uses include:
Chemical processing: reactors, piping, valves, heat exchangers
Acid handling: hydrochloric, sulfuric, mixed acids (grade-dependent)
Pollution control: flue gas desulfurization (FGD), scrubbers
Oil & gas / offshore: components exposed to chlorides and sour environments (grade-dependent)
Hastelloy is often chosen when reliability and long service life in harsh media outweigh initial material cost.
Is Hastelloy better than stainless steel?
For highly corrosive environments, yes—Hastelloy typically offers significantly better corrosion resistance than common stainless steels (including 304/316), particularly against pitting/crevice corrosion and aggressive acids. Stainless steel may still be the better choice for moderate conditions due to cost and availability. The right decision depends on the exact environment (chemical type, concentration, temperature, chlorides) and the required service life.
Is Hastelloy more expensive than stainless steel?
Yes. Hastelloy is usually more expensive because it contains a high percentage of nickel and often molybdenum and other costly alloying elements, plus tighter production controls. However, in severe corrosion service, Hastelloy can reduce total lifecycle cost by extending equipment life, reducing unplanned shutdowns, and minimizing maintenance and replacement frequency.
What are the disadvantages of Hastelloy?
Common trade-offs include:
Higher material cost than stainless steels
More challenging machining (work hardening, tool wear, slower cutting speeds)
Fabrication and welding require proper procedures
Not all grades suit all chemicals (some grades perform poorly in certain oxidizing media, for example)
These disadvantages are often acceptable when the operating environment is aggressive and failure risk is high.
When can Hastelloy not be used?
Hastelloy is not a “universal” corrosion-proof solution. It may be unsuitable when:
The environment is strongly oxidizing and the selected grade is optimized for reducing acids (grade-dependent)
Operating conditions involve chemistries known to attack certain nickel alloys (e.g., specific halogen-related environments, depending on grade)
The application does not require high corrosion performance and cost is the primary driver
The correct answer depends heavily on chemical type, concentration, temperature, and the specific Hastelloy grade. Engineering evaluation is recommended for borderline cases.
Can Hastelloy be welded?
Yes. Many Hastelloy alloys are weldable using standard industrial welding processes such as GTAW (TIG), GMAW (MIG), and SMAW, provided correct parameters and filler metals are used. Proper joint preparation, cleanliness, shielding gas control, and heat input management are important for high-quality results in corrosion-critical service.
Why is welding Hastelloy so hard?
Welding Hastelloy can be challenging because nickel-based alloys may be sensitive to:
Heat input control (too much heat can increase distortion or affect corrosion performance)
Solidification/hot cracking risk in some conditions
Contamination sensitivity (sulfur, oil, dirt can degrade weld quality)
Microstructural changes in the weld and heat-affected zone
Following a qualified welding procedure (WPS/PQR), using compatible filler metals, and maintaining clean welding conditions greatly improves success rates.
Can you weld stainless to Hastelloy?
Yes, it is possible to weld stainless steel to Hastelloy, but it requires careful filler selection and control of dilution and heat input. Dissimilar-metal welding must account for differences in thermal expansion, corrosion behavior, and metallurgical compatibility. In corrosion-critical service, engineers typically choose filler metals that help maintain corrosion resistance and reduce cracking risk. Qualification testing is strongly recommended before production welding.
Will a magnet stick to Hastelloy?
It depends on the grade and condition. Many nickel-based alloys are not strongly magnetic, but factors such as composition, cold work, heat treatment, and weld zones can change magnetic response. A magnet test is not a reliable method to identify Hastelloy grade—material certification and chemistry testing should be used instead.
What is another name for Hastelloy?
“Hastelloy” is widely used as a trade/brand name associated with specific nickel-based alloy families. In engineering contexts, the same materials are also identified by grade designations (e.g., C-276, C-22, B-2, X) and by standard identifiers such as UNS numbers or ASTM/ASME specifications (depending on product form). When sourcing, the grade and standard designation are more precise than the umbrella name.
Which is better Inconel or Hastelloy?
Neither is universally “better”—they are optimized for different primary strengths:
Hastelloy: best known for exceptional corrosion resistance, especially in aggressive chemical and acid environments
Inconel: best known for high-temperature strength and oxidation resistance, often used in hot gas and turbine environments
Selection should be based on the dominant failure risk: corrosion-driven (often Hastelloy) vs temperature/oxidation-driven (often Inconel).
What are the advantages of Hastelloy?
Key advantages include:
Excellent resistance to pitting and crevice corrosion
Strong performance against aggressive acids (grade-dependent)
Resistance to stress corrosion cracking in many environments
Long service life and reduced maintenance in harsh chemical systems
These advantages make Hastelloy ideal for chemical processing equipment and corrosion-critical components.
What material is better than stainless steel?
“Better” depends on the environment. For severe corrosion service, Hastelloy and some other nickel-based alloys can outperform stainless steel. For high-temperature oxidation service, Inconel is often superior. For lightweight corrosion resistance, titanium may be better in certain media. The correct choice depends on chemistry, temperature, chlorides, pressure, and cost/lifecycle targets.
What is the difference between Hastelloy and 304 stainless steel?
304 stainless steel is a general-purpose austenitic stainless steel suitable for many mild-to-moderate environments. Hastelloy alloys are nickel-based materials engineered for much more aggressive corrosion conditions, including certain acids and chloride-containing media where 304 may pit, crevice corrode, or fail prematurely. Hastelloy typically costs more but can deliver a much longer service life in harsh chemical exposure.
Your Reliable Hastelloy Alloy Supplier
With extensive experience supplying nickel-based corrosion-resistant alloys, we provide high-quality Hastelloy materials, technical support, and flexible customization services. Whether you need standard stock materials or application-specific solutions, our team is ready to support your project requirements.
Contact us today to discuss your corrosion environment and receive a tailored Hastelloy alloy solution.
