Alloy 20


Availability:

Quantity:



Inquire Add to Basket

I. Common Forms & Specifications

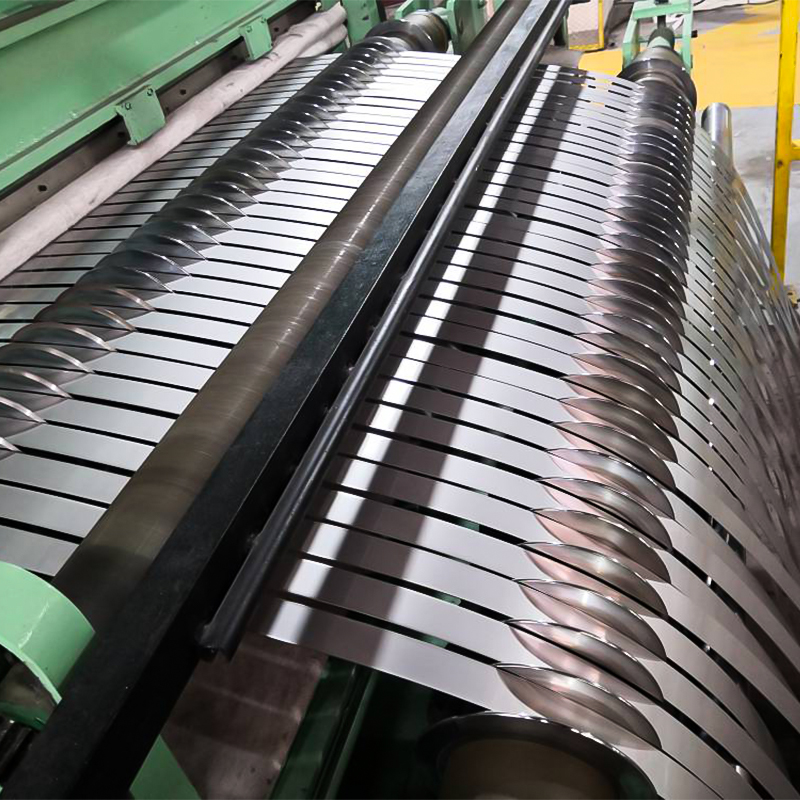

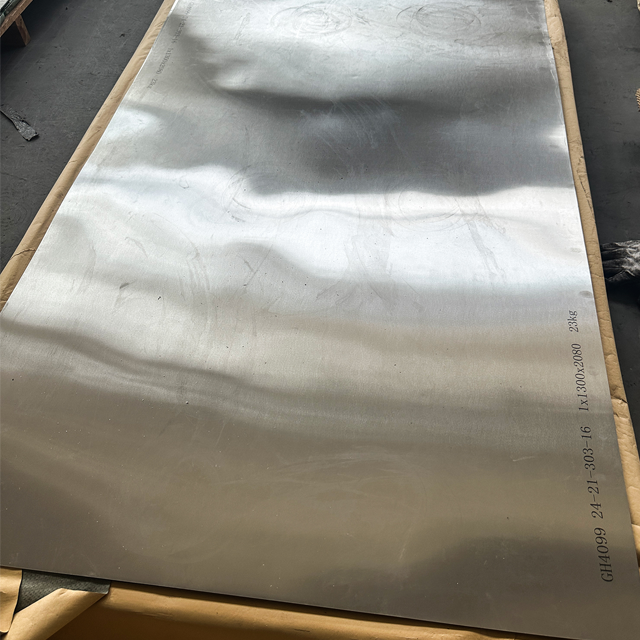

• Plates/Coils: Thickness 0.3-120mm, Width 600-2500mm, Surface: 2B/BA/Polished

• Pipes: Seamless pipe OD 3-200mm; Welded pipe OD 15-400mm, Sch5S-160S

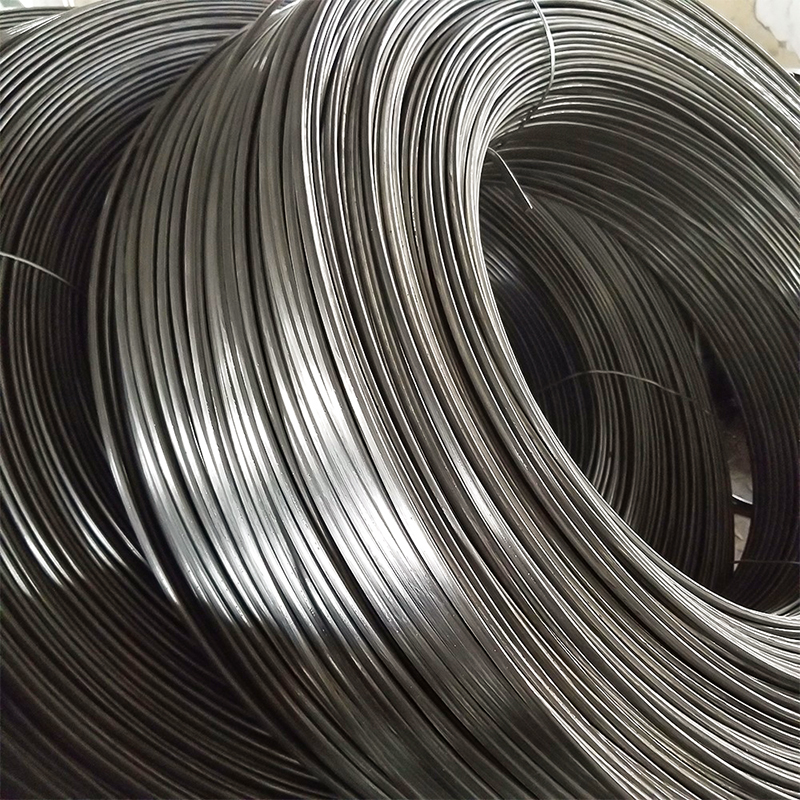

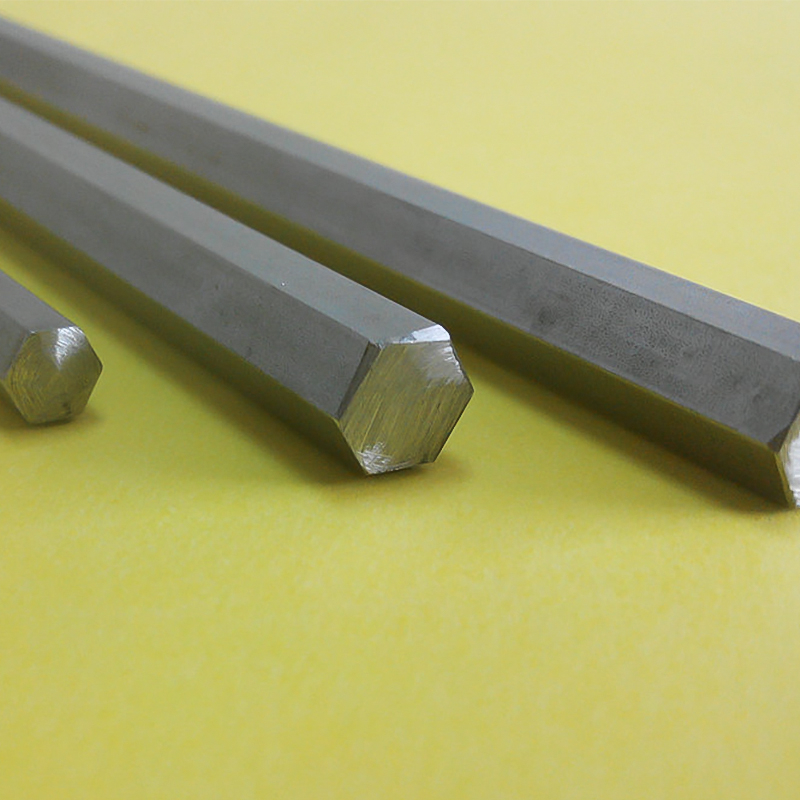

• Bars/Wires: Round bar diameter 5-500mm, Wire diameter 0.1-100mm

• Others: Fasteners (M3-M56), Forgings (Customized), Welding wires (1.0-5.0mm)

II. Core Executive Standards

• Plates: ASTM B463/A240

• Pipes: Seamless pipe: B729/B829; Welded pipe: B464

• Bars: ASTM B473

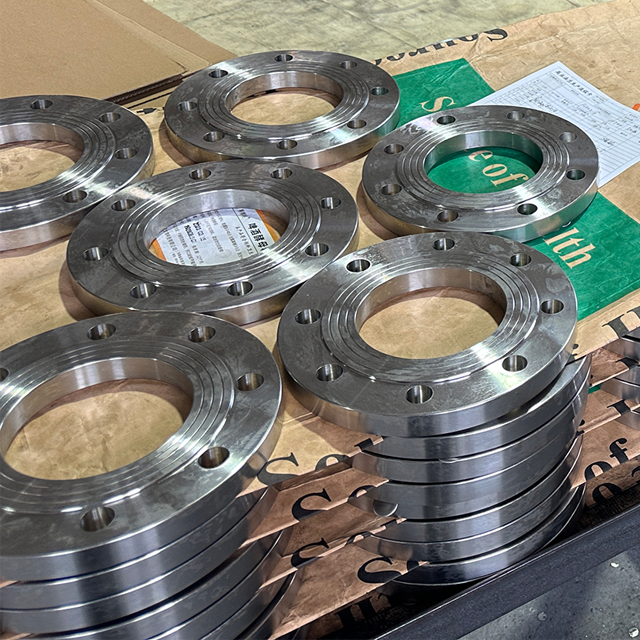

• Fittings/Flanges: ASTM B366/B462

• Fasteners/Welding Materials: ASTM F467/F468, B472

III. International Equivalent Grades

• American Standard: UNS N08020 / Alloy 20

• German Standard: 2.4660 / NiCr20CuMo

• Chinese Standard: NS143 / NS1403

• Japanese Standard: NAS 335X

IV. Delivery Conditions

• Plates/Pipes: Solution annealing + Pickling

• Bars: Annealed/Solution annealed

• Welded Pipes: Solution annealing + Weld annealing

V. Customization Service

Shanghai Bozhong Metal Group Co., Ltd. can provide customization services for the full range of Alloy 20 products according to customer needs, including special sizes, non-standard specifications, customized surface treatment and processing technology, to meet the personalized needs of various industrial applications.

Incoloy 020 N08020 bar N08020 plate N08020 coil N08020 pipe N08020 wire Alloy 20 bar N08020 tube Alloy plate

Product Description

Alloy 20 (UNS N08020) is a high-performance nickel-iron-chromium-based austenitic alloy, specifically engineered for superior corrosion resistance in harsh industrial environments. Its unique chemical composition is optimized by adding molybdenum, copper, and niobium, endowing the alloy with excellent resistance to acidic media and chloride-induced stress corrosion cracking, making it a reliable choice for critical applications across multiple industries.

1. Chemical Composition

Main chemical composition (mass fraction, %): Nickel (Ni): 32.0-38.0, Chromium (Cr): 19.0-21.0, Molybdenum (Mo): 2.0-3.0, Copper (Cu): 3.0-4.0, Niobium (Nb): ≤1.0 (usually added at 8 times the carbon content), Carbon (C): ≤0.07, Sulfur (S): ≤0.035, Phosphorus (P): ≤0.045, Iron (Fe): Balance.

2. Physical Properties

Density: 8.08g/cm³; Melting point: 1370-1425℃; Thermal conductivity: 12.85W/m·K (at 100℃); Coefficient of linear expansion: 12.35×10⁻⁶/℃ (20-100℃).

3. Core Features & Advantages

Exceptional Corrosion Resistance: Excellent performance in sulfuric acid (up to 80% boiling), phosphoric acid, nitric acid, and chloride-containing environments. The synergistic effect of molybdenum and copper enhances pitting resistance, with a critical pitting temperature above 60℃. It also performs well in alkaline solutions such as sodium hydroxide.

4. Main Application Fields

Good Processability: Suitable for hot working (1100-900℃), cold working, and various welding methods (TIG welding, MIG welding, submerged arc welding). Post-weld annealing can minimize residual stress and ensure consistent performance.
Stable Mechanical Properties: Tensile strength ≥550MPa in the solution-annealed state, with high ductility (elongation ≥30%), ensuring structural integrity under various working conditions. It maintains excellent performance even in high-temperature environments (up to 315℃).
Compliance with International Standards: Complies with international standards such as ASTM/ASME (e.g., B463, B464, B473) and has equivalent grades worldwide, including 2.4660 (German Standard), NS143/NS1403 (Chinese Standard), and NAS 335X (Japanese Standard).

Alloy 20 is widely used in industries requiring high corrosion resistance, including but not limited to:

Chemical & Petrochemical Industry: Sulfuric acid regeneration units, mixed acid reactors, chemical storage tanks.

5. Supply Range & Customization Services

Marine Engineering: Seawater desalination evaporators, ship cooling systems, offshore platform components.

We provide a full range of Alloy 20 products to meet diverse project needs, including:

As a professional supplier, Shanghai Bozhong Metal Group Co., Ltd. provides customization services for Alloy 20 products. We can customize special sizes, non-standard specifications, surface treatments (e.g., 2B, BA, Polished), and processing technologies to perfectly match your specific industrial application requirements.

Energy & Environmental Protection: Flue Gas Desulfurization (FGD) scrubber liners, radioactive waste treatment tanks.
Pharmaceutical & Food Processing: Bioreactors, acid sauce delivery pipes, food-grade corrosion-resistant equipment.

6. Quality Assurance

All our Alloy 20 products are accompanied by complete Material Test Reports (MTR) and comply with strict quality control standards. Each batch of products undergoes testing for chemical composition, mechanical properties, and corrosion resistance to ensure stable and reliable performance.

Plates/Coils, Seamless/Welded Pipes, Bars/Wires
Fittings (Elbows, Tees, Reducers), Flanges, Fasteners
Forgings, Custom Components

Advantages

Top-tier quality, rigorously guarded; prices that hit the sweet spot of value.

Quality you can count on, prices that make sense—your perfect business partner.

Application Fields

Length standards (e.g., meter bars, calibration gauges), micrometers, and dial indicators—CTE stability ensures measurement accuracy across environments

Precision Metrology
Satellite antenna reflectors (maintains shape in space temperature swings: -180℃ to +120℃), gyroscope frames, and missile guidance system components

Aerospace & Defense
Telescope，laser alignment structures, and camera lens mounts—prevents optical misalignment from temperature changes;

Optical Equipment
Wafer handling robots, lithography machine precision rails, and vacuum chamber components—dimensional stability ensures nanoscale processing accuracy

Semiconductor Industry
High-frequency oscillator housings, quartz crystal holders, and LED display backplane frames—avoids performance degradation from thermal expansion

Electronics
Nuclear reactor instrumentation brackets (stable in 100-250℃), and medical imaging equipment (CT scanner precision rails)—combines low expansion with structural reliability.

Energy & Medical
